Axio Imager 2 VARIO

The Ultimate Microscope for Materials Laboratories

  • Large Format Microscope
  • Automated Imaging
  • Widefield or Confocal
Contact Us

Axio Imager 2

  • Axio Imager.A2 Vario

    Research with a Purpose
    • Manual Light Path
    • Motorized Focus
    • 200 x 200 mm stage

  • Axio Imager.Z2 Vario

    Ultimate Materials Microscope
    • Motorized Components
    • Clean Room Ready
    • 300 x 300 mm Stage
1 2

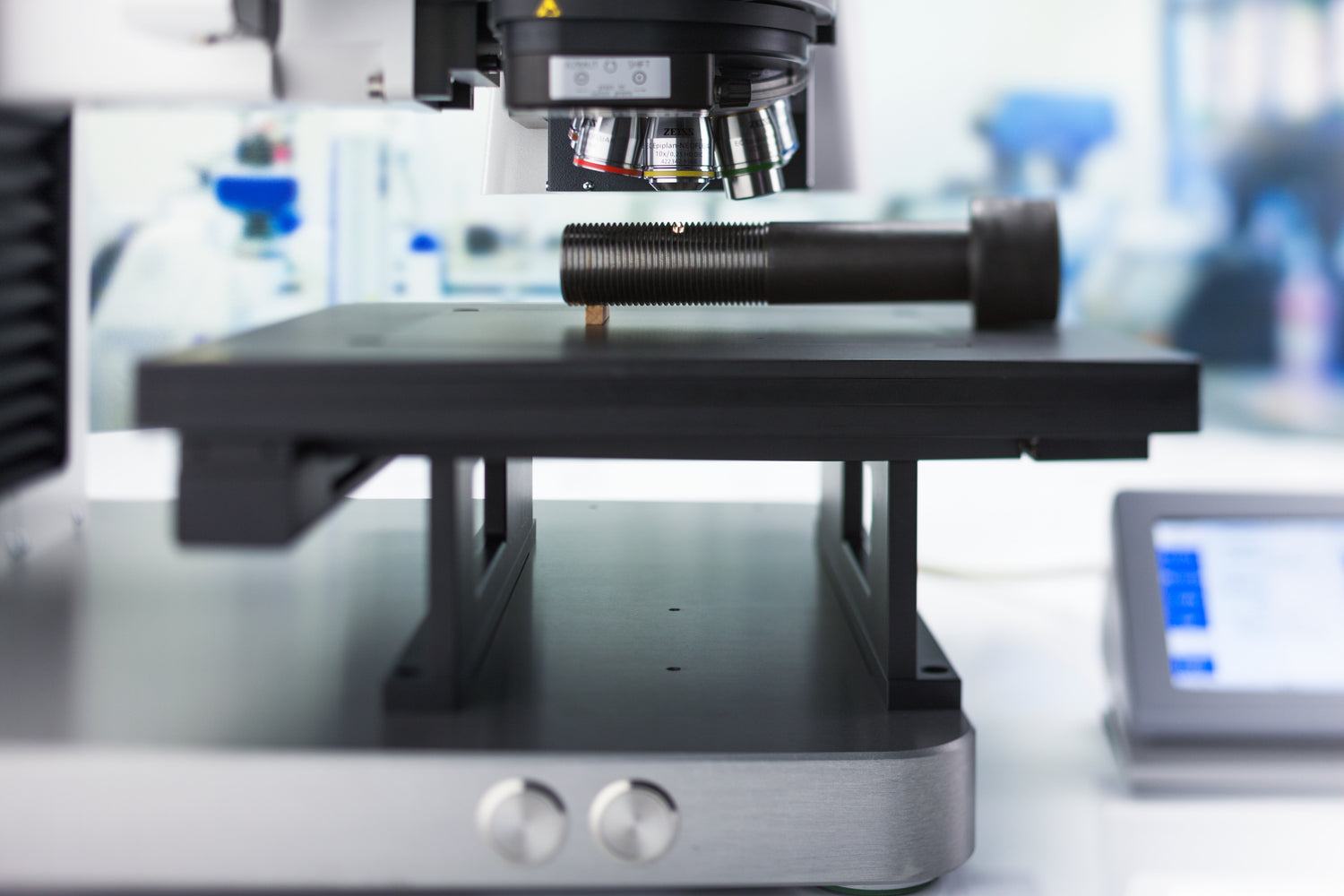

Room for Real-World Parts

Image samples up to 300 × 300 mm and a maximum of 254 mm tall without cutting or compromising your specimen.

The stage height is fixed when focusing. Large, heavy, or fragile specimens (e.g., wafers, photomasks, coated glass, composites) remain perfectly still. The sample isn’t lifted or dropped during focusing, which eliminates the risk of vibration, drift, or mechanical stress on the material.

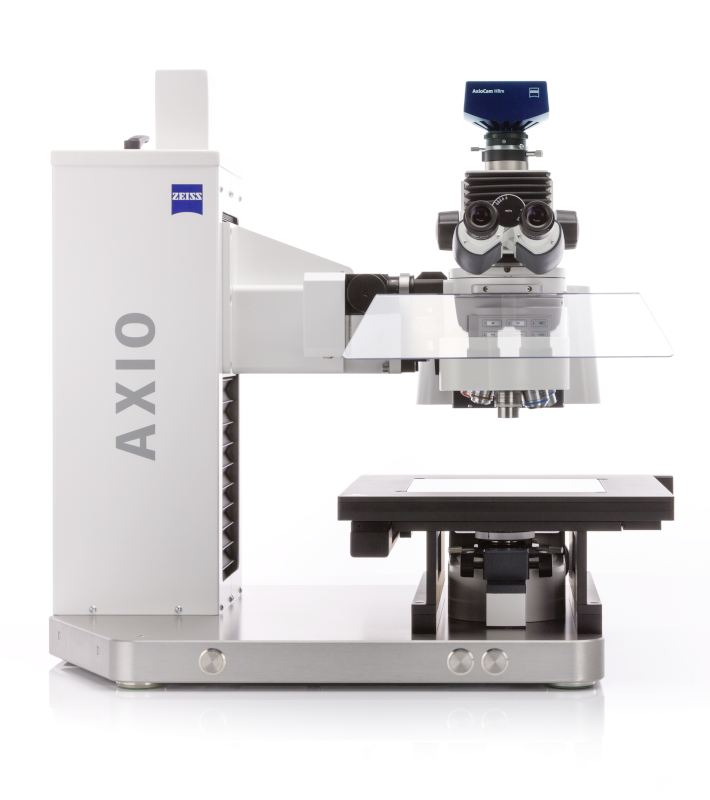

Clean Room Ready

Certified per DIN EN ISO 14644-1 and designed to meet ISO Class 5 when paired with the clean-room kit.

Compatible Wafer Size:

  • 2-inch (50mm)
  • 3-inch (75mm)
  • 4-inch (100mm)
  • 5-inch (125mm)
  • 6-inch (150mm)
  • 8-inch (200mm)
  • 12-inch (300mm)

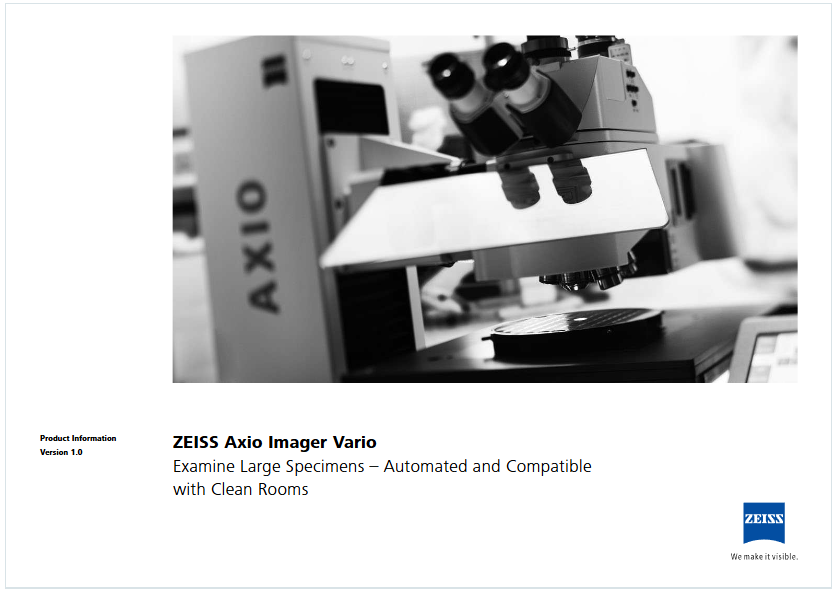

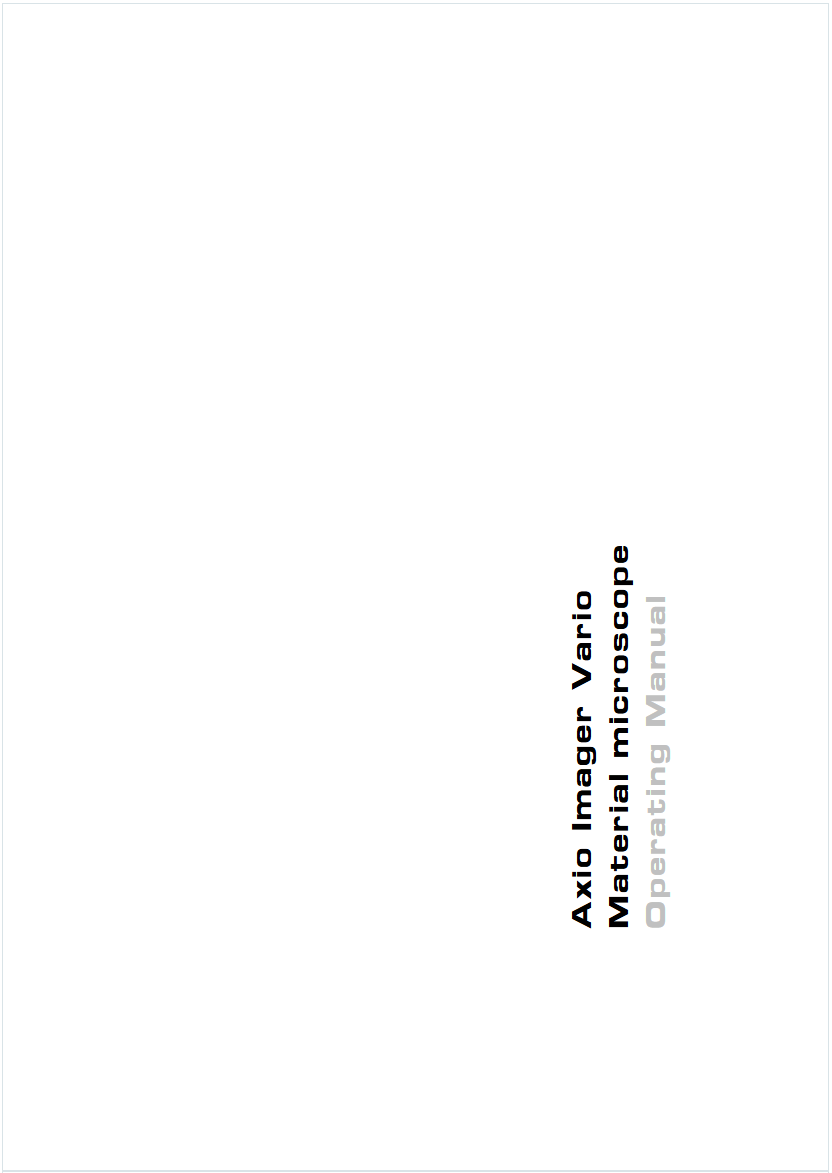

Downloads
