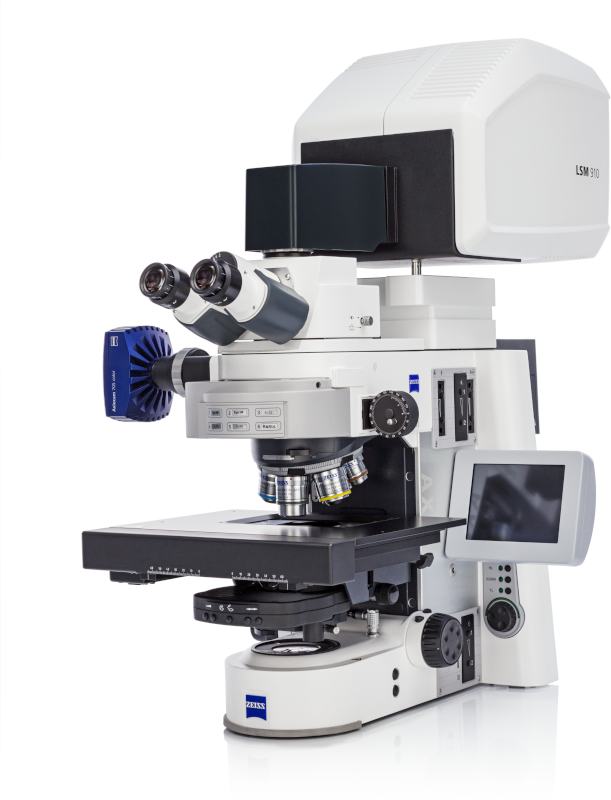

LSM 900 for Materials

Your versatile Confocal Microscope for advanced imaging and surface topography

  • Non-contact Surface topography
  • All-in-one system
  • Versatile configuration
Contact Us

LSM 900 Family

  • Axio Imager.Z2m LSM 900

    Standard Samples
    • Upright System
    • Compact Footprint
    • Samples up to 63mm tall

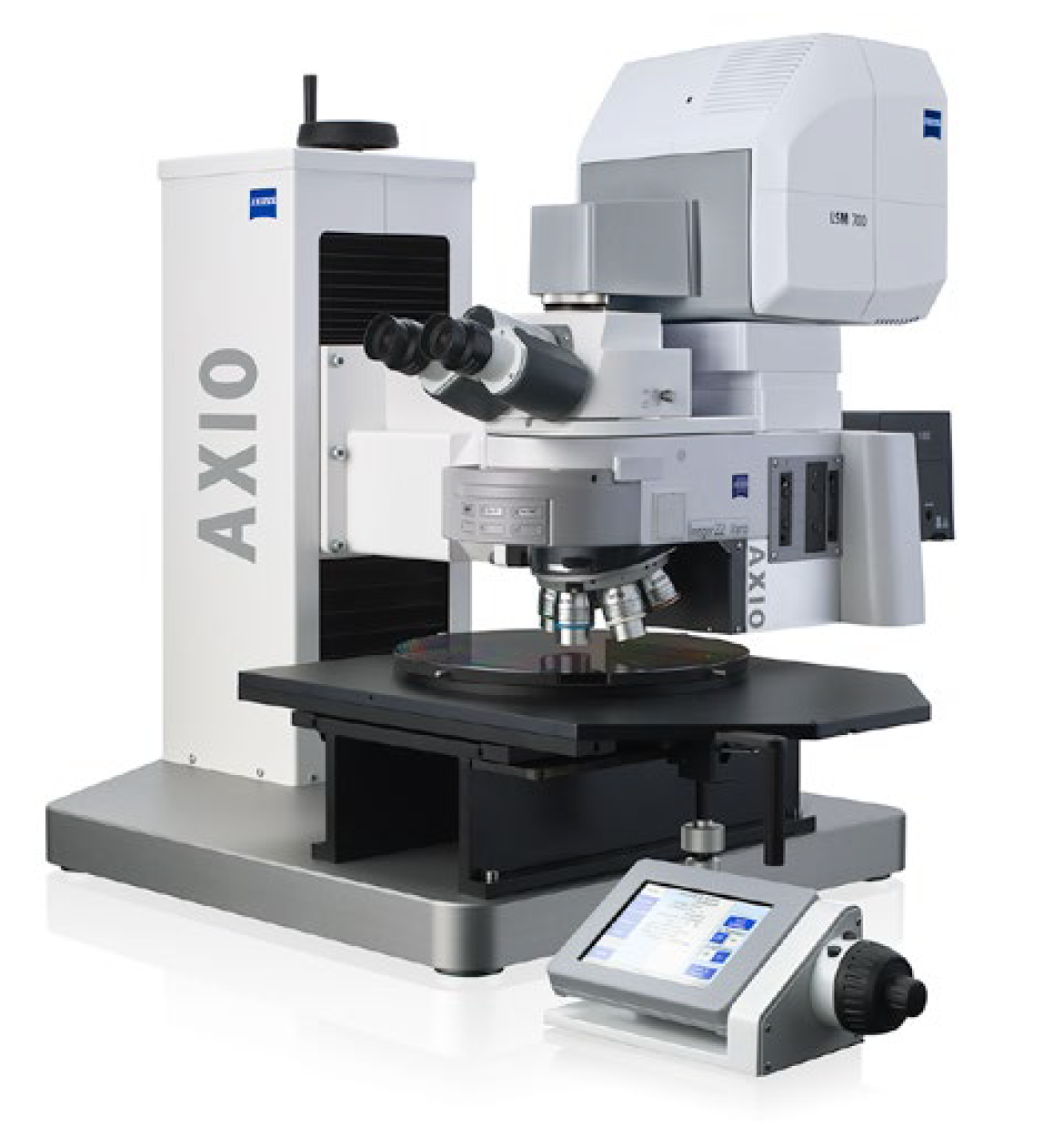

  • Axio Imager.Z2 Vario LSM 900

    Large Format Samples
    • Upright System
    • Samples up to 300 x 300 mm
    • Clean Room Compatible

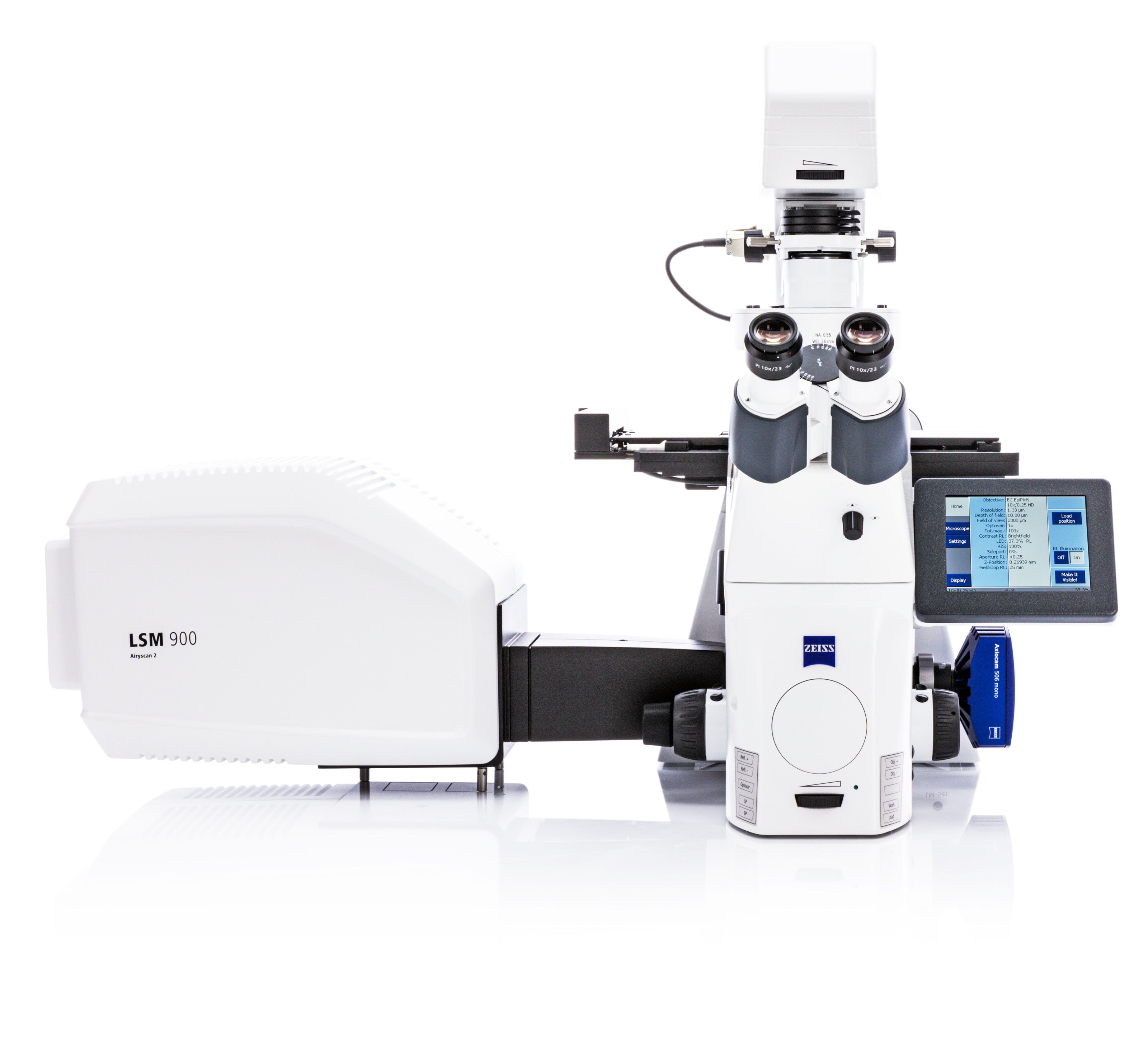

  • Axio Observer 7 LSM 900

    Liquid & Specialized Samples
    • Inverted System
    • Environmental Chambers
    • Imaging from below sample
1 3

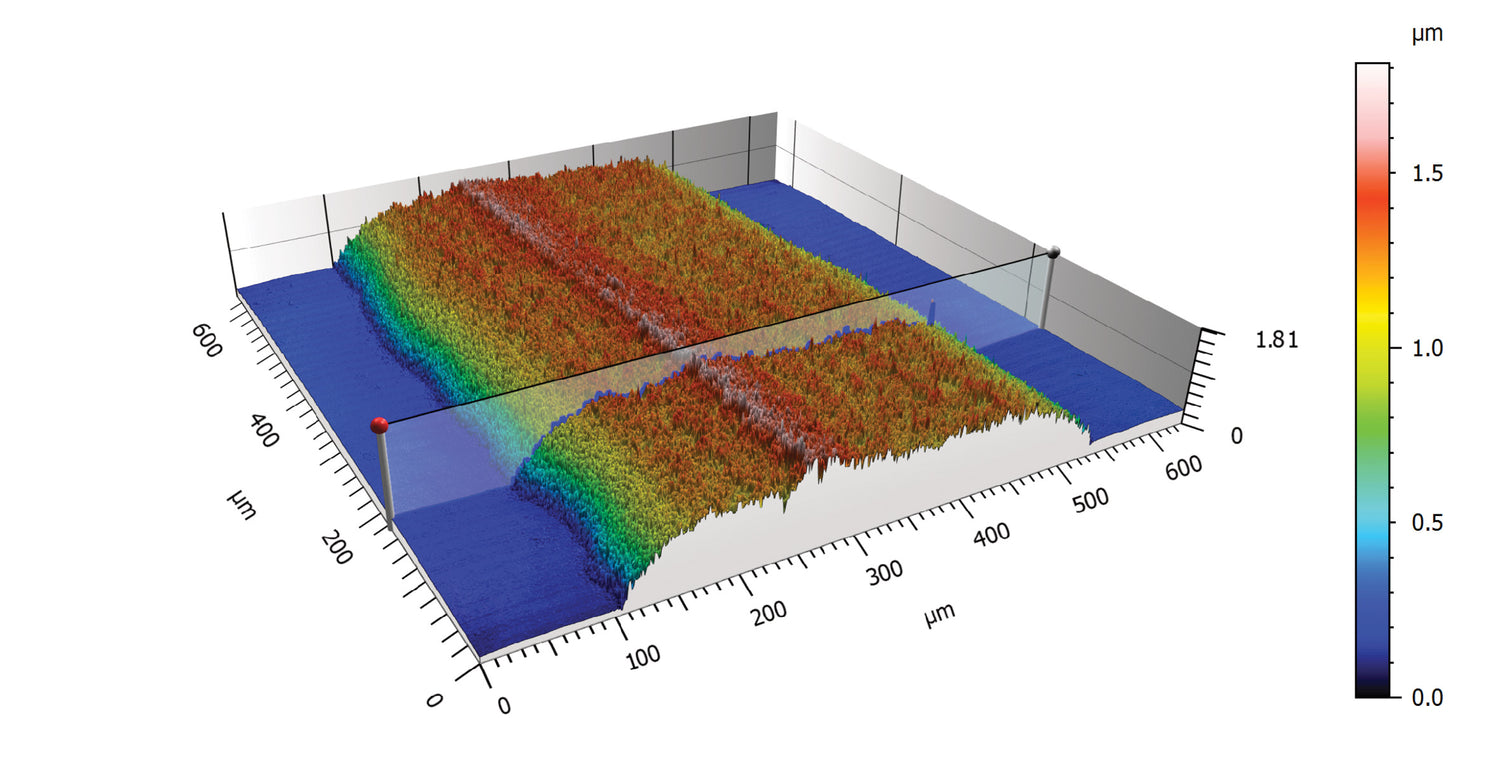

Non-contact 3D Surface Analysis

Non-contact high precision topography combined with flexible imaging
platform (light and fluorescence microscope)

  • Roughness evaluation
  • Contour measurement
  • Step height measurement

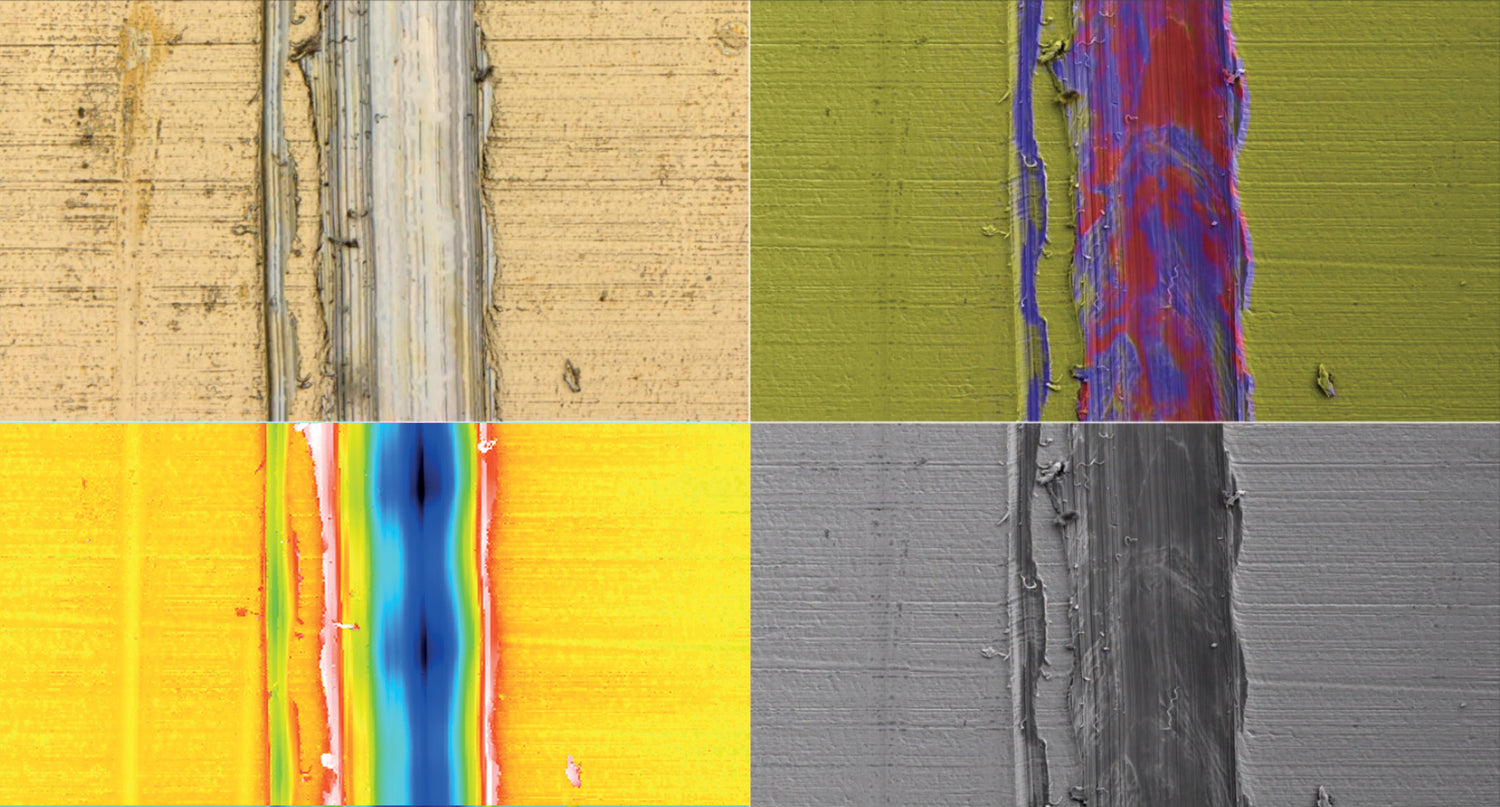

Light Microscope, Fluorescence Microscope, and Confocal on One Platform

Capture images in light microscope mode (BF/DF/POL/DIC/FL) and seamlessly switch to confocal mode—without switching systems.

Overlay data for a complete analysis of your sample.

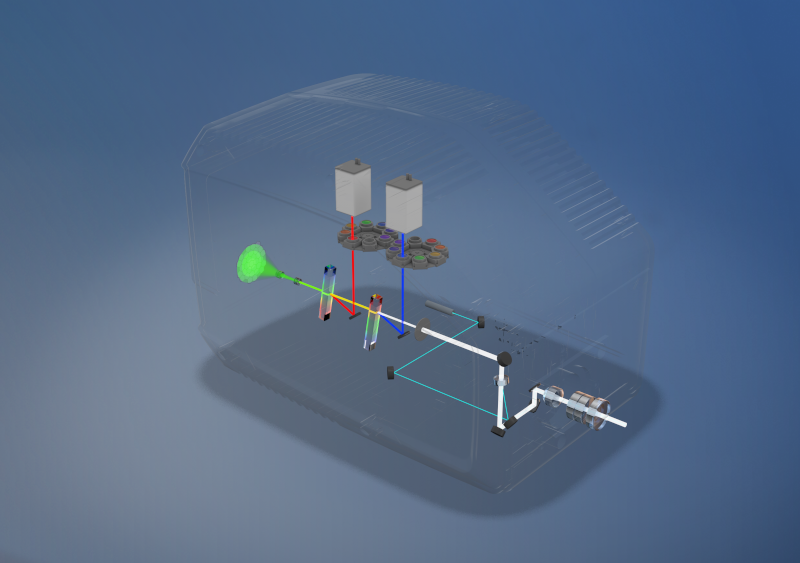

LSM 900 System

Excitation Lasers

  • 405nm System
  • 405nm / 488nm / 561nm / 640nm System

Detectors

  • 1 Channel multi-alkali (MA) PMT or
  • 2 Channel multi-alkali (MA) PMTs
  • 3 Channel: 1 additional GaAsP PMT, MA PMT or Airyscan detector

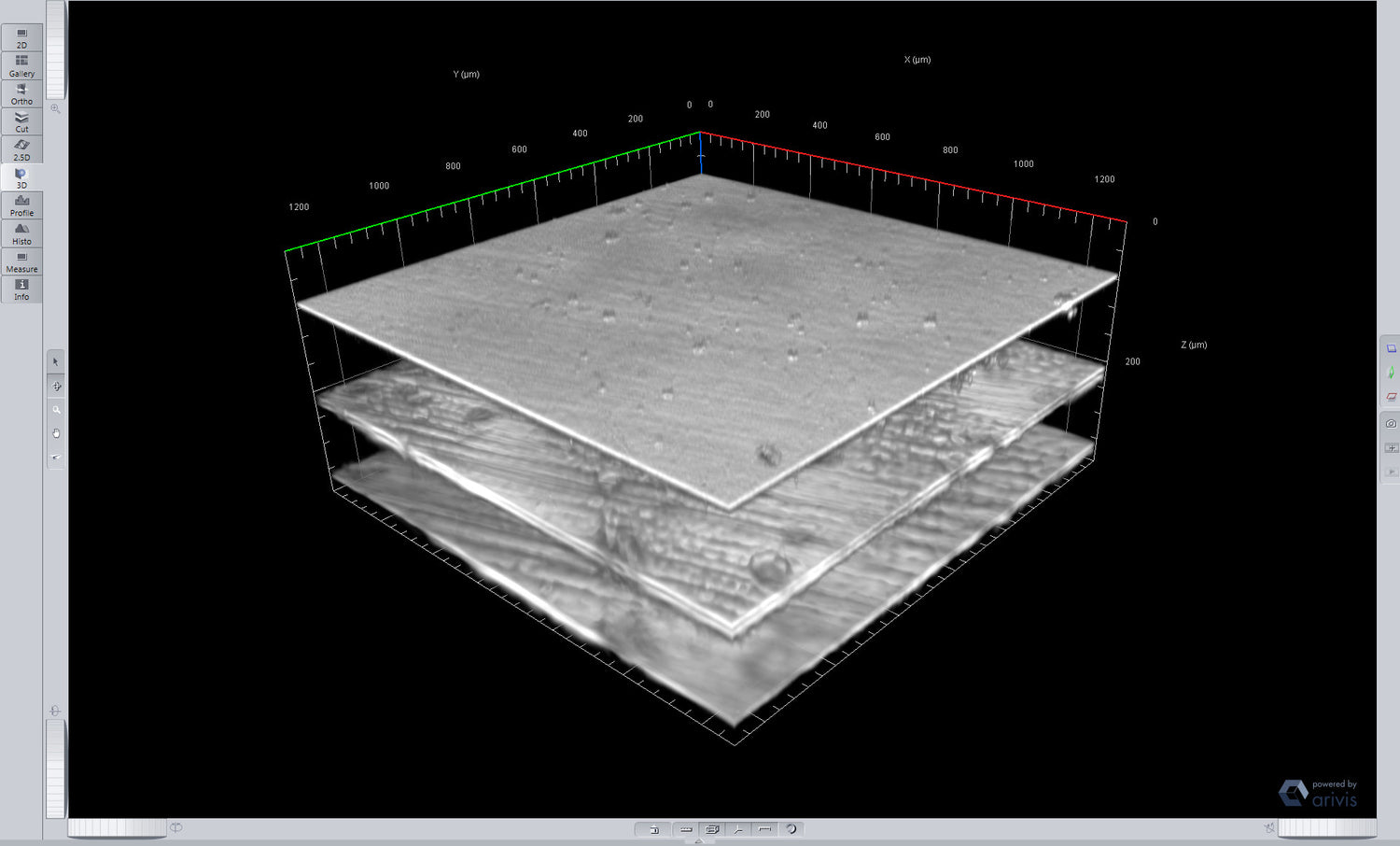

Layer Thickness

Measure layer thickness of multi-layer components. *Sample Dependent

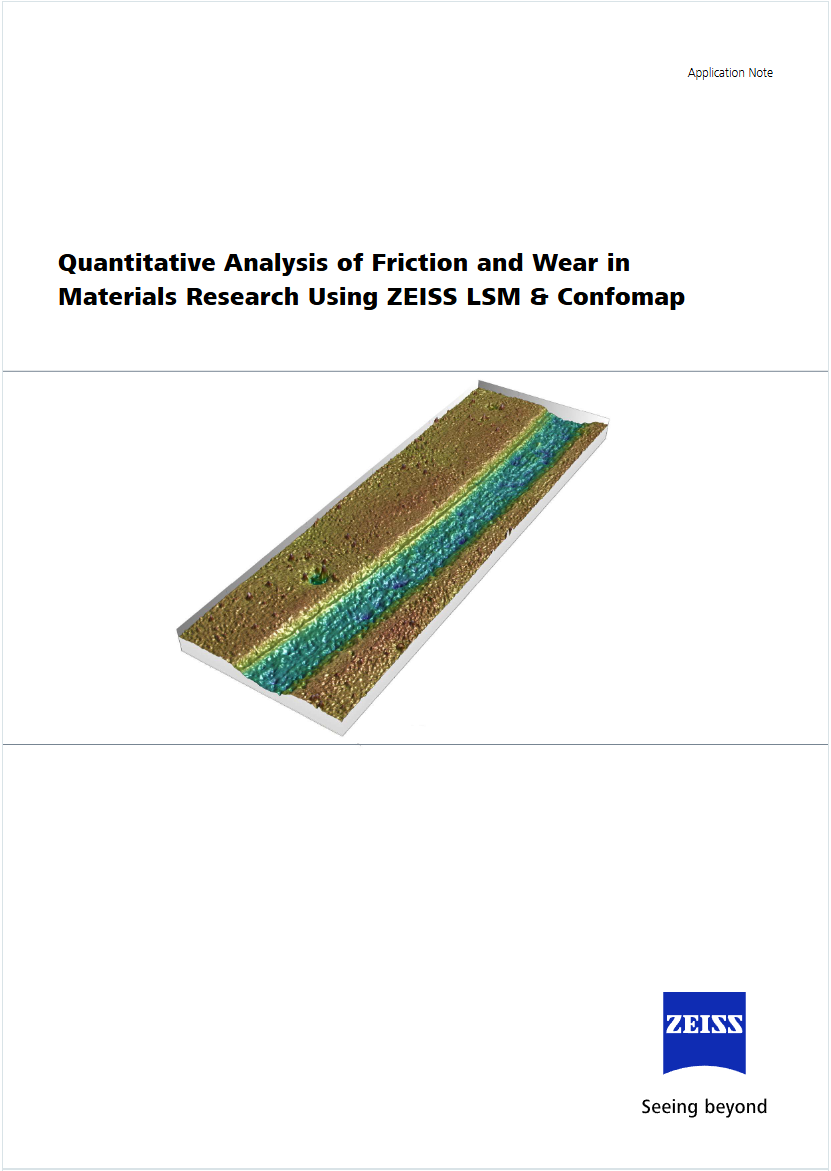

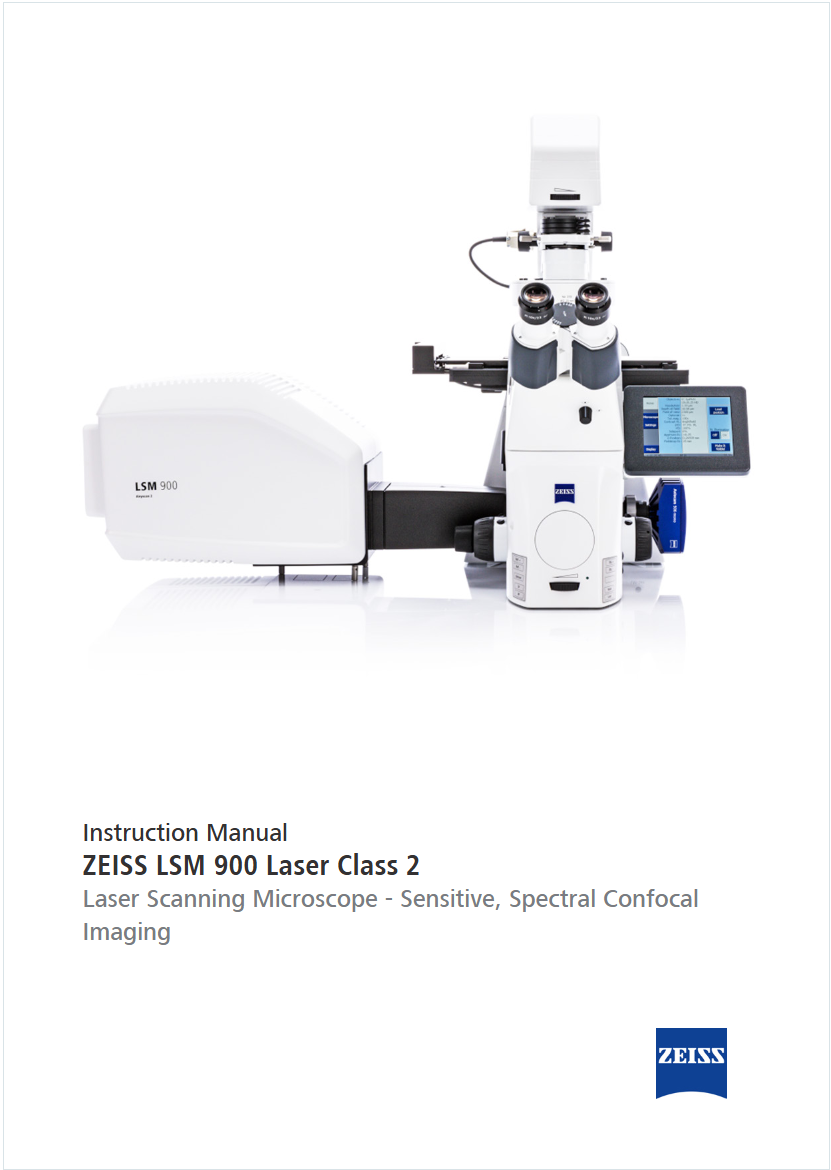

Downloads
