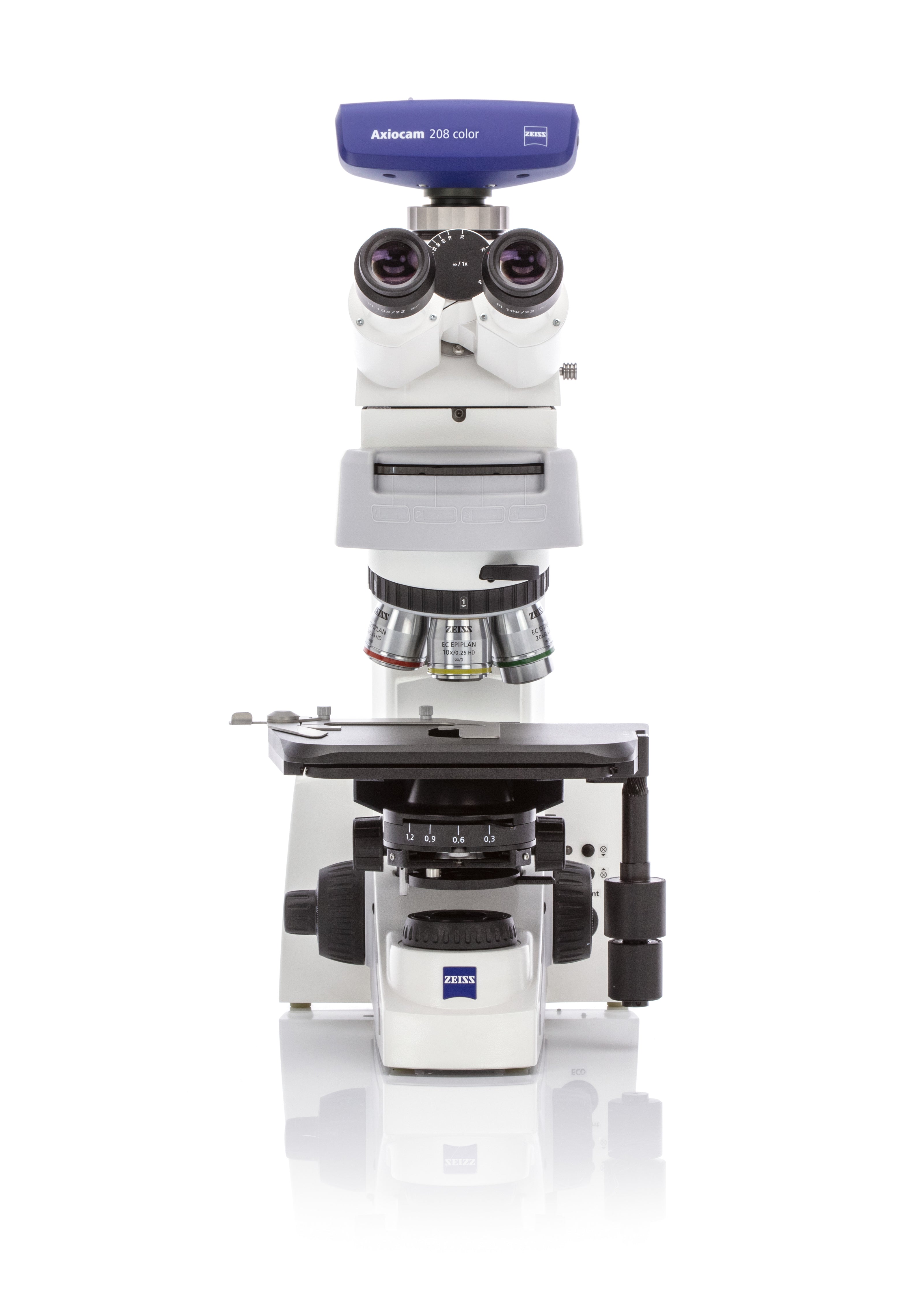

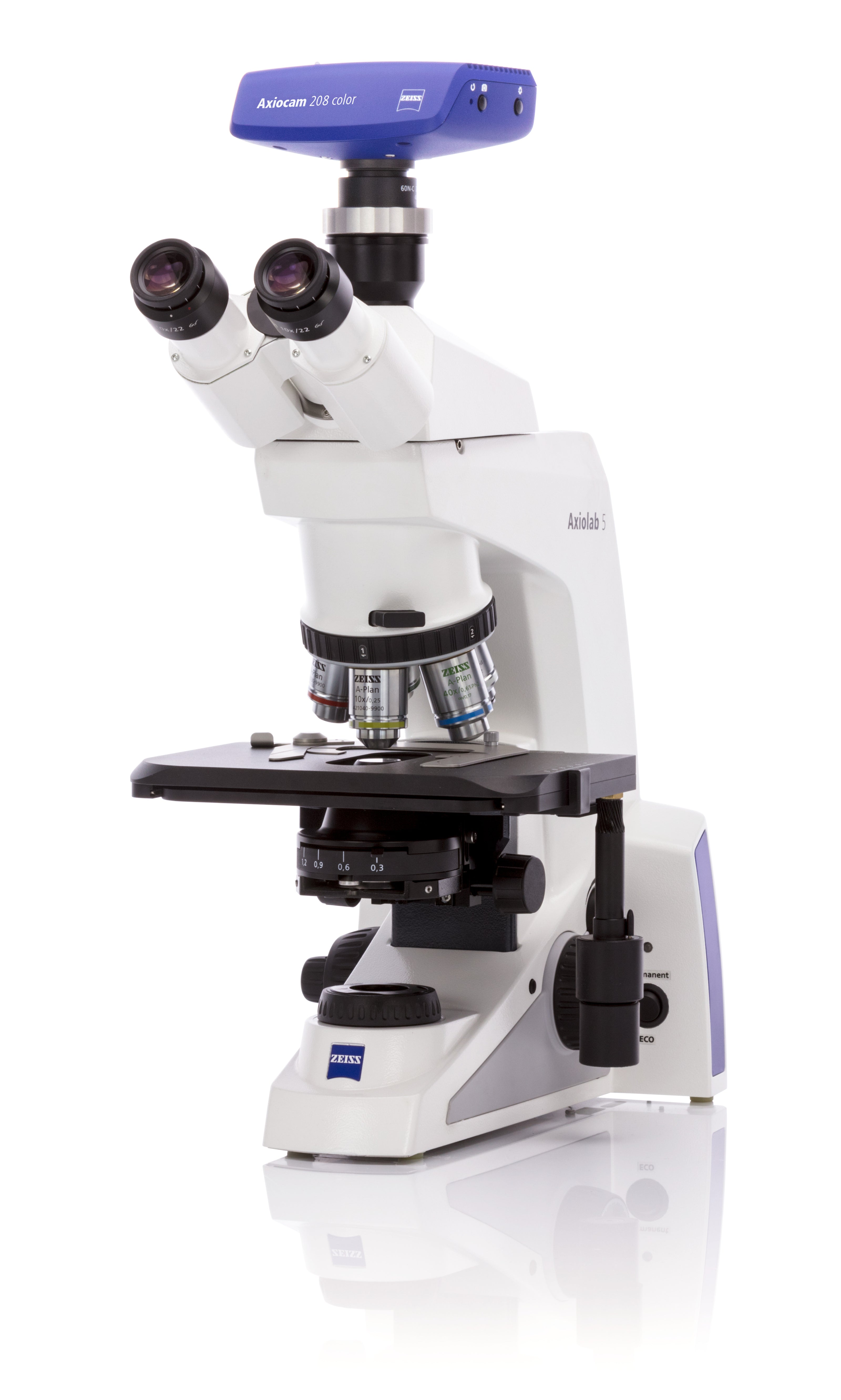

Axiolab 5

CAPTURE. DOCUMENT. ANALYZE

  • Compact Size
  • Stand-Alone Imaging
  • Flexible Configurations
Contact Us

Axiolab 5 Family

  • Transmitted Light Configuration

    Transparent Samples
    • LED Illumination
    • Transmitted Light
    • Coded Components

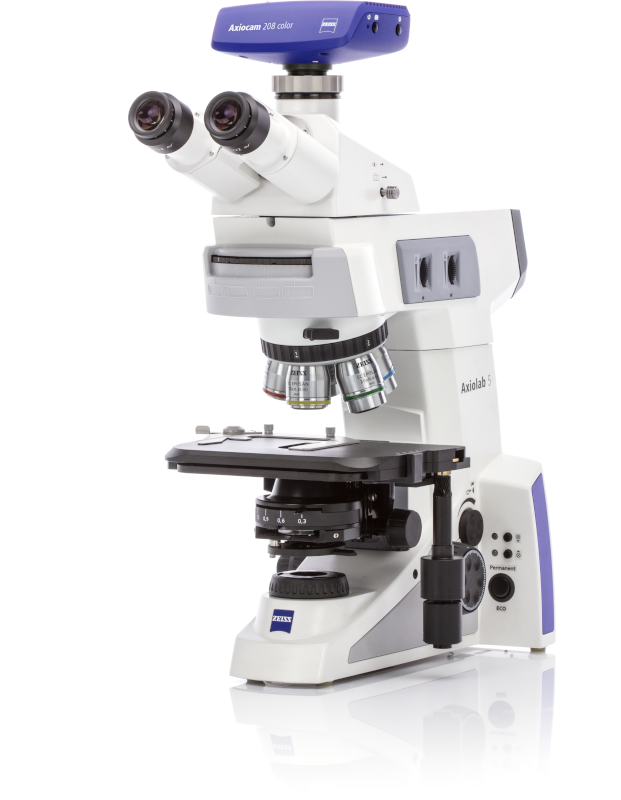

  • Reflected Light Configuration

    Opaque Samples
    • LED Illumination
    • Transmitted and Reflected Light
    • Coded Components

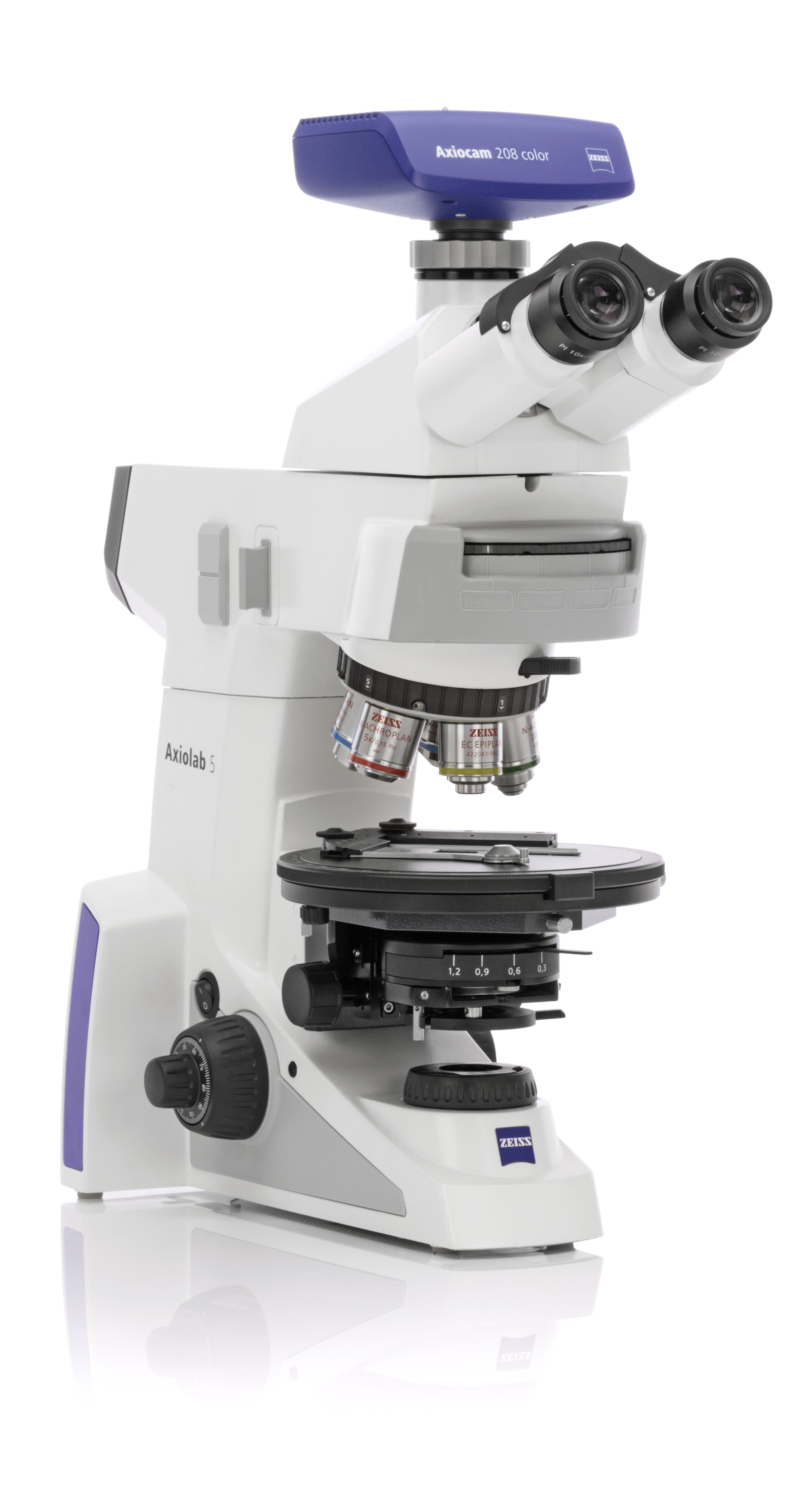

  • Polarization Configuration

    Birefringent Samples
    • 360° Rotary Stage
    • Transmitted and Reflected Light
    • Orthoscopy & Conoscopy
1 3

One-Touch Imaging

Focus → Snap → Done. Auto white balance, exposure, and automatic scaling's keep your records consistent. Store images with microscope & camera metadata and proper scaling for instant reports and audits.

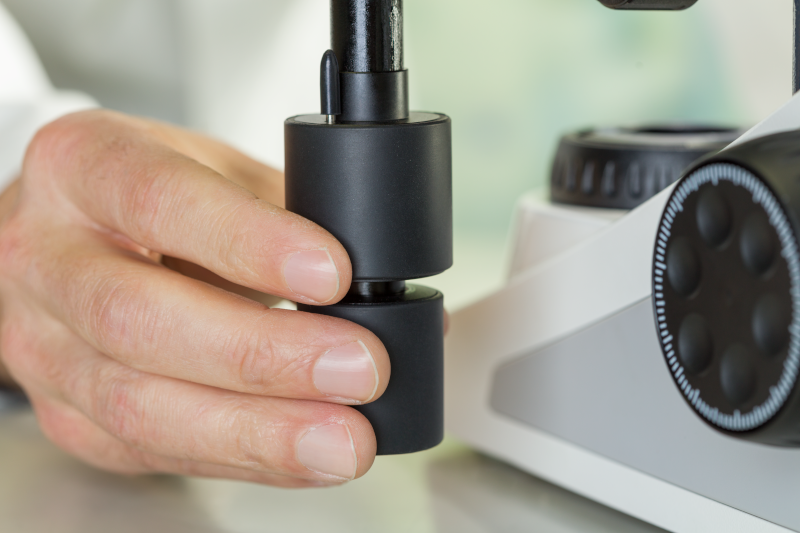

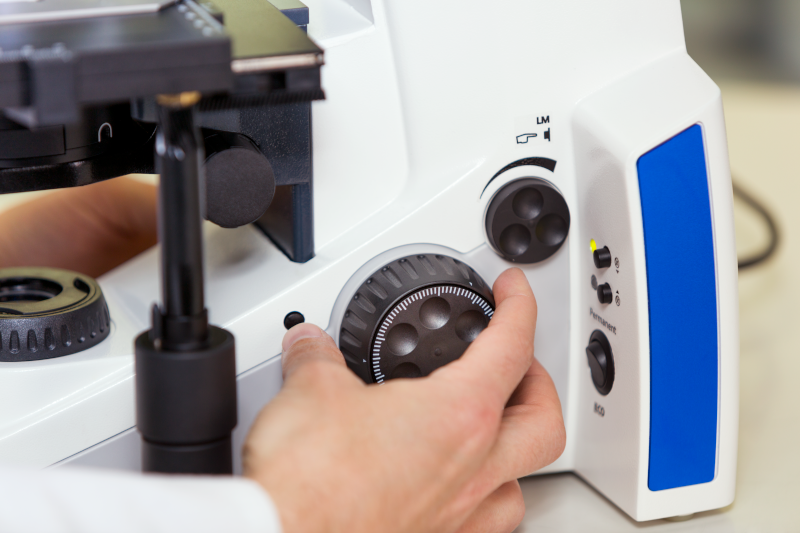

Ergonomics that Scale to Your Day

Snap, focus, stage drive, and light intensity are where your hand naturally rests so repetitive tasks feel lighter hour after hour.

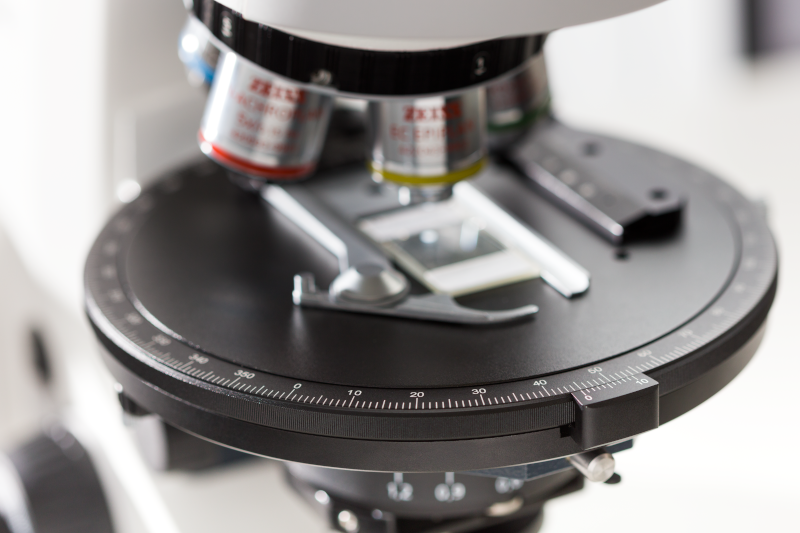

Rotary Stage

360° graduated rotation allows for accurate orientation of specimens, ideal for structural studies. Smooth rotation with clearly marked degree scale supports repeatable positioning for comparative imaging.


Crystallography Applications

  • Enables determination of optical orientation and birefringence properties.
  • Essential for identifying crystal symmetry and extinction angles.


Thin Section Analysis

  • Facilitates analysis of rocks, minerals, and ceramics under polarized light.
  • Supports systematic rotation of thin sections to observe pleochroism, interference colors, and extinction.

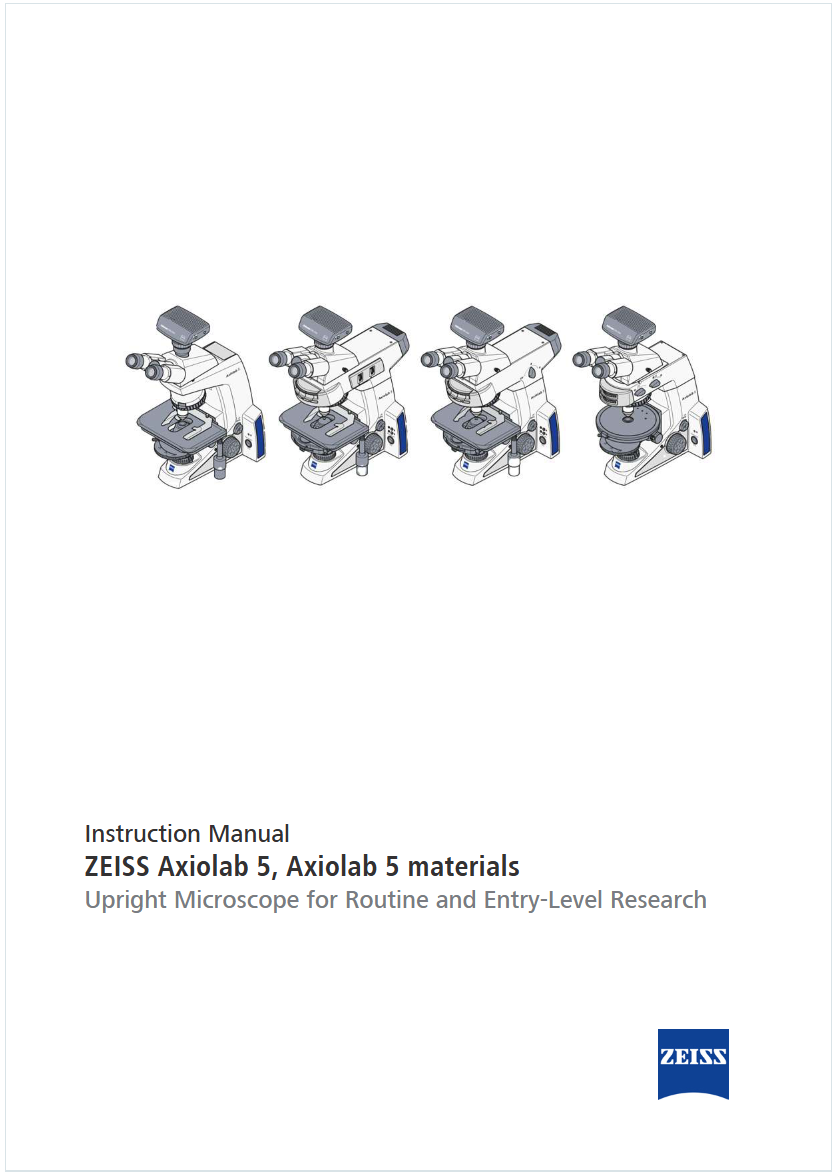

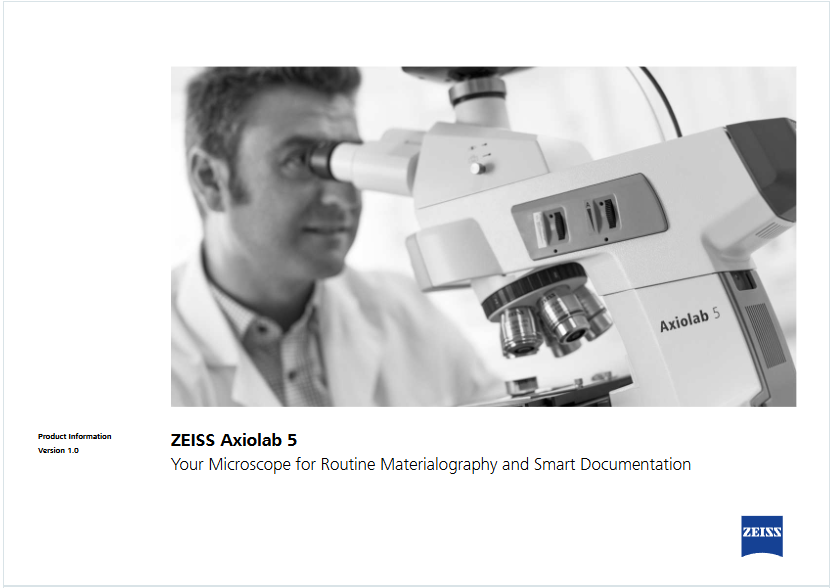

Downloads
