Smart Design

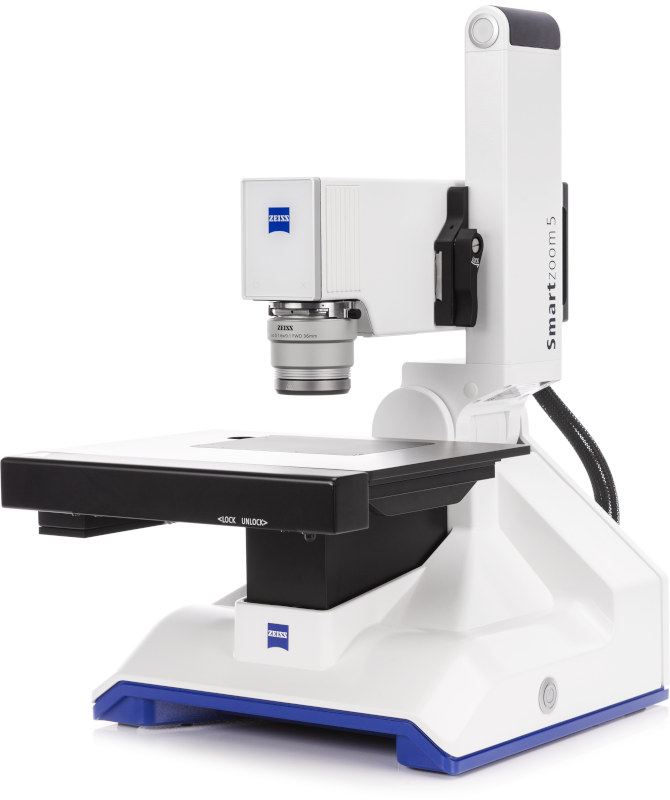

Stop wrestling with manual setups. Smartzoom 5 combines motorized optics, guided software, and reproducible lighting so anyone on your team can capture clean images and defensible measurements—every time.

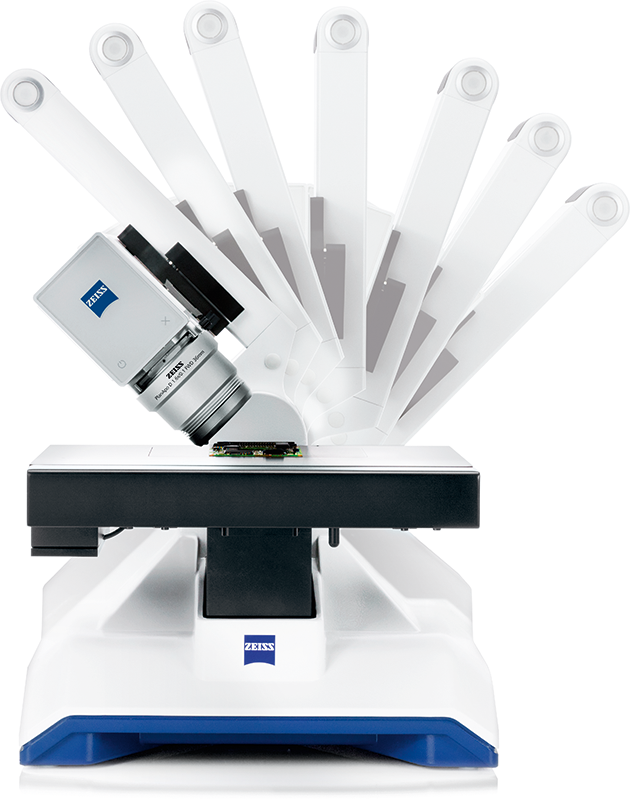

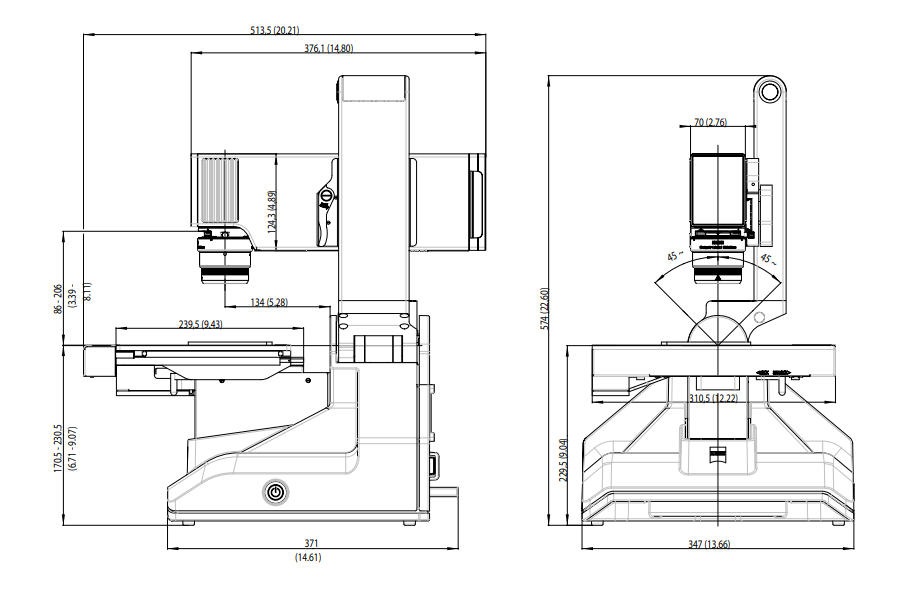

- Multi angle view of sample from a +/- 45° angle
- Region of interest remains in focus and centered in the field when tilting
- Encoded Components
- Fully motorized
- Software workflows
Lighting
- Coaxial Illuminator
- Ring Illuminator

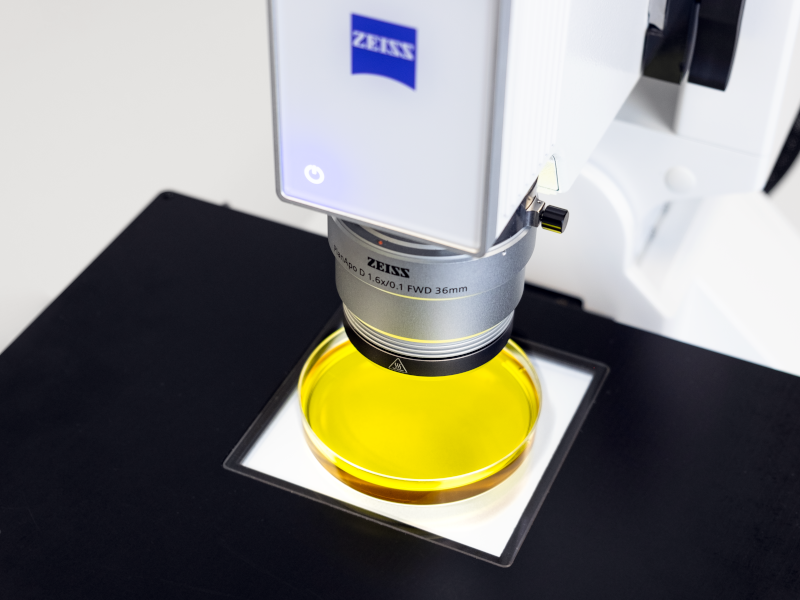

- Transmitted Illuminator
Accessories to minimize reflections
- Polarizer: Cut glare
- Diffuser: Even brightness across sample

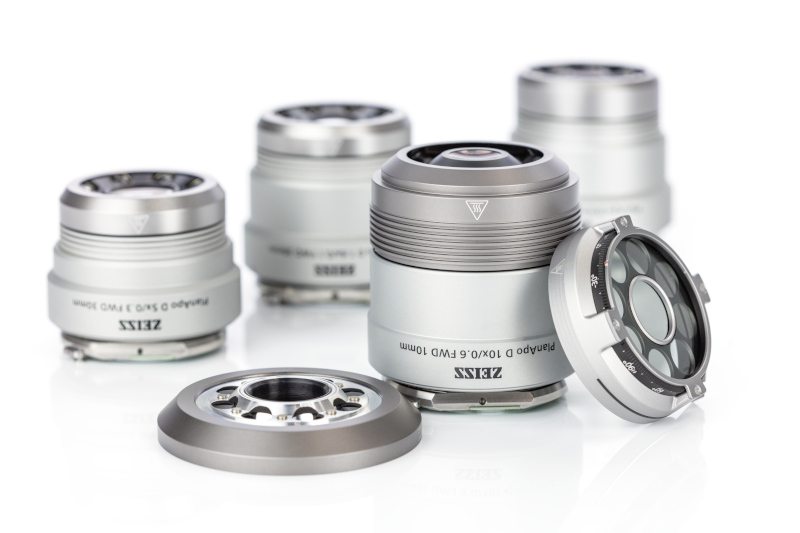

Objectives
- Encoded: Switch Objectives seamlessly
- Individually mountable: Maximize room for sample
- Collision Protection: Stand stops immediately when pressure sensor activated
Objective Specifications
| Objective | Numerical Aperture | Working Distance (mm) | On-screen Mag* | Resolution (µm) | Depth of Field (µm) | Field of View (mm × mm) | Zoom |
|---|---|---|---|---|---|---|---|
| 10× Objective | |||||||
| 10× | 0.6 | 10 | 2022× | 0.56 | 2 | 0.18 × 0.13 | max |
| 10× | 0.6 | 10 | 204× | 1.7** | 15 | 1.76 × 1.32 | min |
| 5× Objective | |||||||
| 5× | 0.3 | 30 | 1011× | 1.1 | 6 | 0.35 × 0.26 | max |
| 5× | 0.3 | 30 | 102× | 3.5** | 59 | 3.52 × 2.64 | min |
| 1.6× Objective | |||||||
| 1.6× | 0.1 | 36 | 324× | 3.5 | 59 | 1.05 × 0.79 | max |
| 1.6× | 0.1 | 36 | 33× | 10.8** | 574 | 10.5 × 7.90 | min |
| 0.5× Objective | |||||||
| 0.5× | 0.03 | 78 | 101× | 11.1 | 602 | 3.14 × 2.36 | max |
| 0.5× | 0.03 | 78 | 10× | 34.6** | 5880 | 31.4 × 23.6 | min |
* with respect to a 17.5” display diagonal and an aspect ratio of 4:3.
** camera in HighRes-mode.

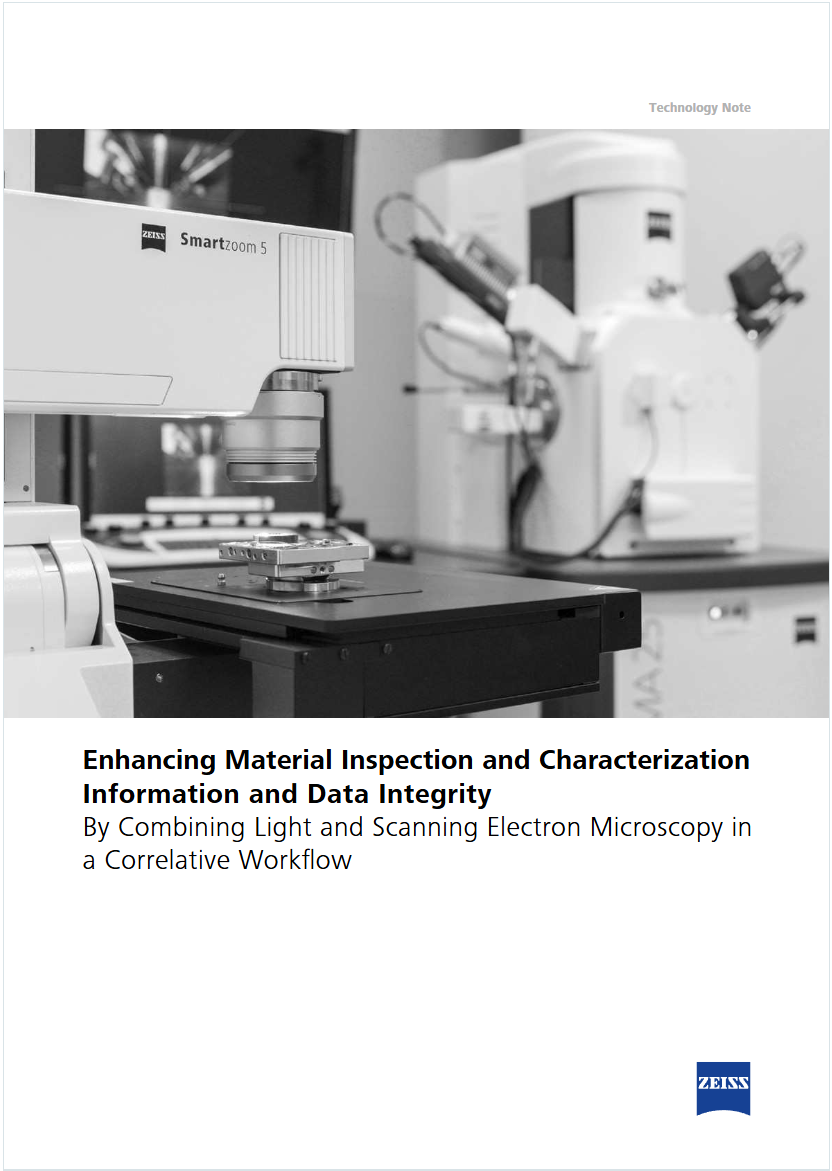

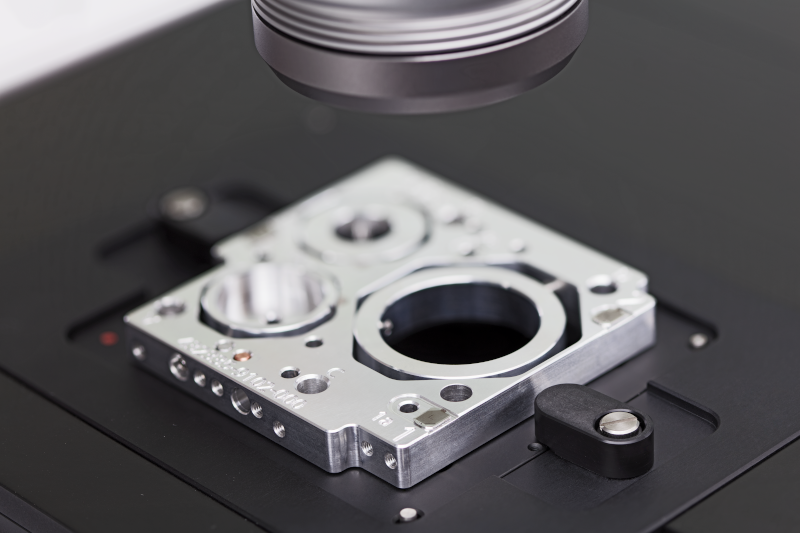

Correlative Microscopy

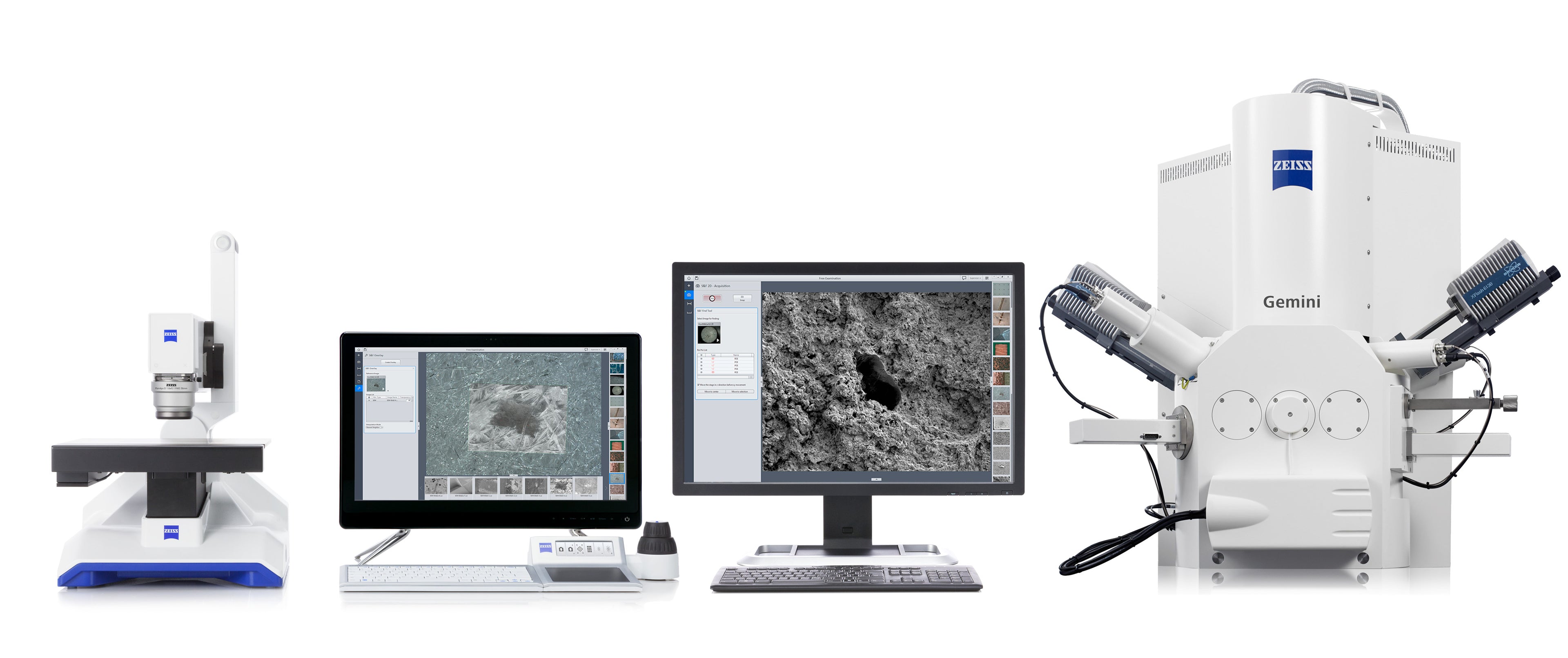

Navigate seamlessly between the Smartzoom 5 and your ZEISS SEM. Images can be acquired on the Smartzoom 5, and then relocated on your electron microscope. An overlay image is automatically created which can be shared with collaborators overing a new view your samples.
