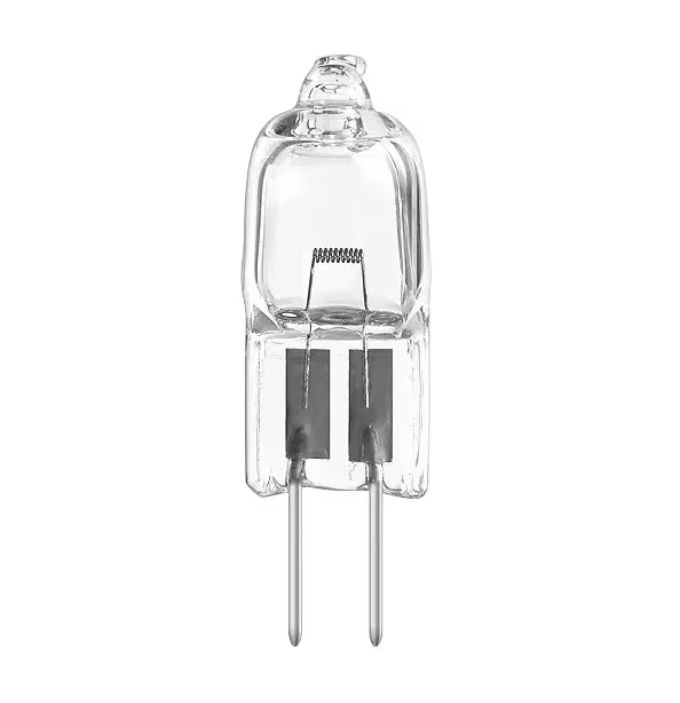

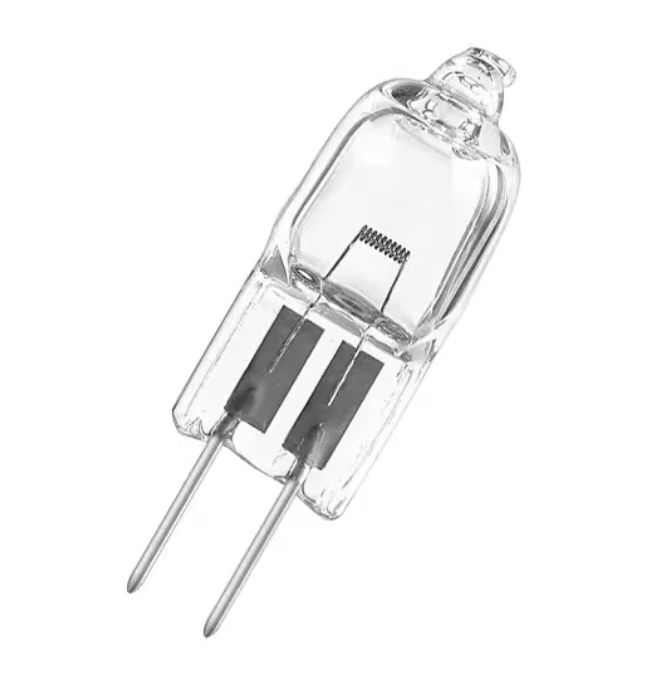

HT-B8118N || 6V 20W Lamp || Eclipse E100, TMS, SMZ, and Legacy Series

6V 20W low voltage halogen microscope lamp without reflector

For Nikon Microscope models:

• Eclipse E100
• Labophot
• TMS
• Optiphot (66 DIA Base only)
• Alphaphot (KT, KT-2)
• SMZ10 (Coaxial ill., DIA Base)
• SMZ-U (Coaxial & Epi illuminators)
• SMZ-1,2 (vertical illuminator)

Specifications

• Wattage – 320W
• Voltage – 6V
• Color Temperature – 3350K
• Lifespan – 100 hours
• Base (standard designation) – G4
• Luminous flux – 460 lm
• Bi-pin halogen without reflector
